DSP digital processing is used to quickly respond to changes in the external environment to ensure high product reliability.

PFC technology makes the input power factor of UPS higher than 0.99

Using online double conversion structure design, rack tower installation is flexible

Application scope: PC SERVER; core switch; server; high-speed rail disaster prevention system; financial station; rail transit PIS system, etc.

The use of digital control technology avoids defects such as temperature drift of hardware parameters inherent in traditional analog control, and ensures the consistency and reliability of UPS.

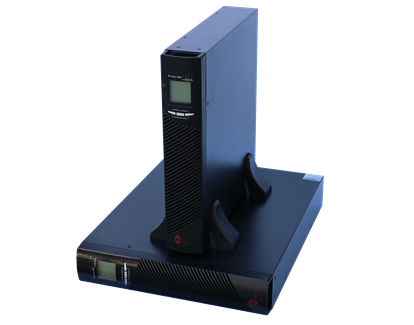

Support 19-inch standard rack installation or tower installation.

Rotatable display LCD can adapt to different directions without mechanical

It has a self-diagnostic function at power-on to find the hidden dangers of UPS as early as possible to avoid any negligence.

It has a wide AC input voltage range of 110-290VAC, thereby reducing the frequency of battery use and greatly extending the service life of the battery.

It has a wide input frequency range (50Hz±10%), ensuring stable operation when connected to various fuel generators.

The power input terminal uses advanced voltage double power factor correction technology (PFC) to make the input power factor higher than 0.99, which improves the utilization rate of electric energy, completely eliminates the harmonic pollution of the UPS to the mains power grid, and reduces the UPS The operating cost is a green and environmentally friendly power supply with high cost performance

With the automatic adjustment function of the battery discharge termination voltage, UPS can automatically determine the battery discharge rate by detecting the load current when the battery is discharged, and then automatically adjust the battery discharge termination voltage to extend the battery life.
