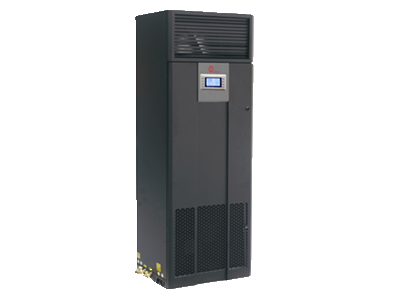

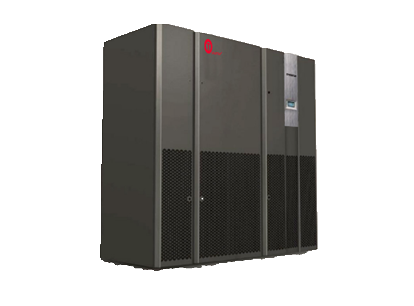

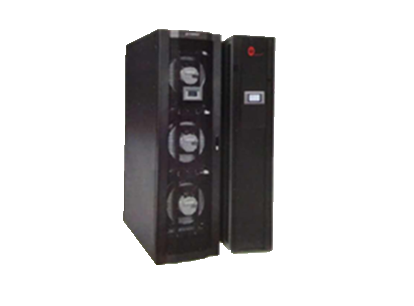

scenario: room-level refrigeration solution for medium and large data centers Model Series: Direct Expansion Series Air cooling, water cooling capacity is 7.5kW-100kW Chilled water series: 25kW-150kW The whole series supports upper and lower air supply

High energy efficiency system design, ultra-high annual energy efficiency ratio

Adopt American Copeland scroll compressor, energy saving and high efficiency

Electronic expansion valve

Standard backward-inclined centrifugal fan, which is obviously energy-saving compared to traditional belt drive

Optional EC fan, stepless speed regulation, further improve energy efficiency ratio and reduce operating costs

Easy to install modular frame design

DCAIR indoor unit adopts modular design, making it easier to disassemble and put in place

Installation engineers can use simple tools to quickly disassemble, transport, and reorganize without worrying about matching operation

V-shaped evaporator design, effective cooling airflow, natural treatment of condensation

Large windward area, low heat exchanger resistance, small air flow disturbance

The air distribution is more even, and the performance of the cooling system is better

Good layout of the whole machine, convenient maintenance

Environmentally friendly refrigerant: R407C

other

G4 level filter

Humidifier: Electrode humidifier, humidification volume 20%-100% adjustable

Heater: Three-stage adjustable all-aluminum finned electric heater. Optional large capacity electric heating

Dehumidification method: fan speed dehumidification

Air-cooled condenser: the fan is controlled by stepless speed regulation, and the outer shell adopts aluminum plate spraying double anti-corrosion design
